◆Excellent drying effect- HAIDISHENG!!
◆Professional drying: fruits, vegetables, edible fungi, traditional Chinese medicinal materials, marine products and other subsidiary agricultural products.
tel：024-85856600 85856699
Watch Video
Details
Instructions
Case

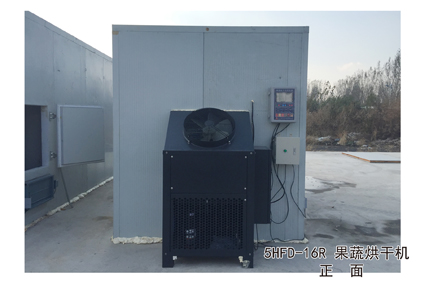

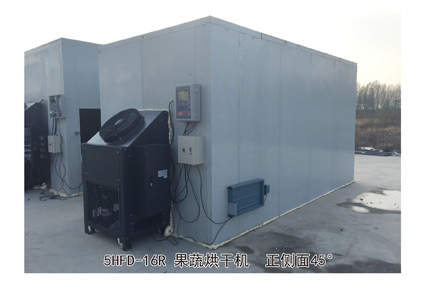

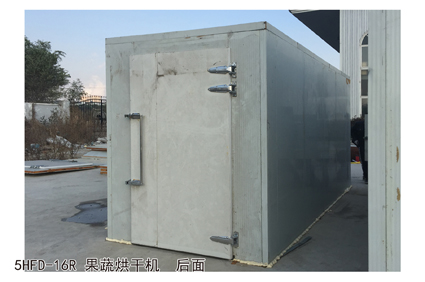

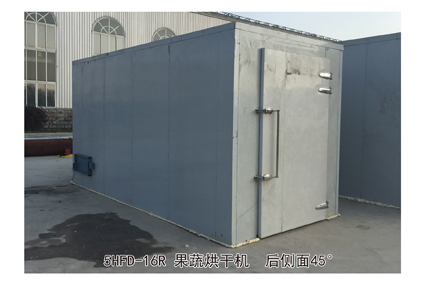

Consultation5H series fruit and vegetable dryer is an automatic drying equipment researched and developed by our R&D staff with dedication based on summary and absorption of advanced technologies home and abroad.
Compared with the traditional dryer in China, the equipment has advantages of large material loading density, labor saving, fuel saving, stable temperature and humidity, high automation, easy operation and shorter drying time, etc. In the drying process, the heating is uniform. After dried, jujube has bright color, little and shallow wrinkle on the skin, strong elasticity, small color difference on the front and reverse sides as well as increased commercial grade, average price and economic benefit.In addition to drying of jujube, 5H series fruit and vegetable dryer can be also used to dry multiple subsidiary agricultural products to enhance the economic value and increase the foreign exchange earning, such as vegetables, edible fungi, traditional Chinese medicinal materials, marine products, fresh fruits, grains and forage grass, etc. The equipment can be applied for multiple purposes, improving the utilization rate of dryer.
|
Item
Technical parameters
Model
5HFD-16R
5HFD-34R
5HFD-51R
Overall dimensions (length x width x height)(mm)
5200×2220×2475
6400×3200×2800
8400×3200×2800
Installation type
Plate type
Plate type
Plate type
Heating capacity of heat supply equipment
23kW
36kW
53.7kW
Allowable loading capacity (kg)
1000
2000
3000
Heating mode
heat pump
Motor power of circulating fan (Kw)
2.2
2.2
4.4
Rated power (Kw)
18（6+12）
23（11+12）
31（19+12）
Equipment voltage (V)
380±20%
Control method of temperature and humidity control equipmen
Manual/ automatic
Control accuracy of temperature and humidity control equipment (℃)
Dry bulb ±1, wet bulb ±1
Records query, recording capacity
Once every hour, recording for 500 h or 1000 h
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
